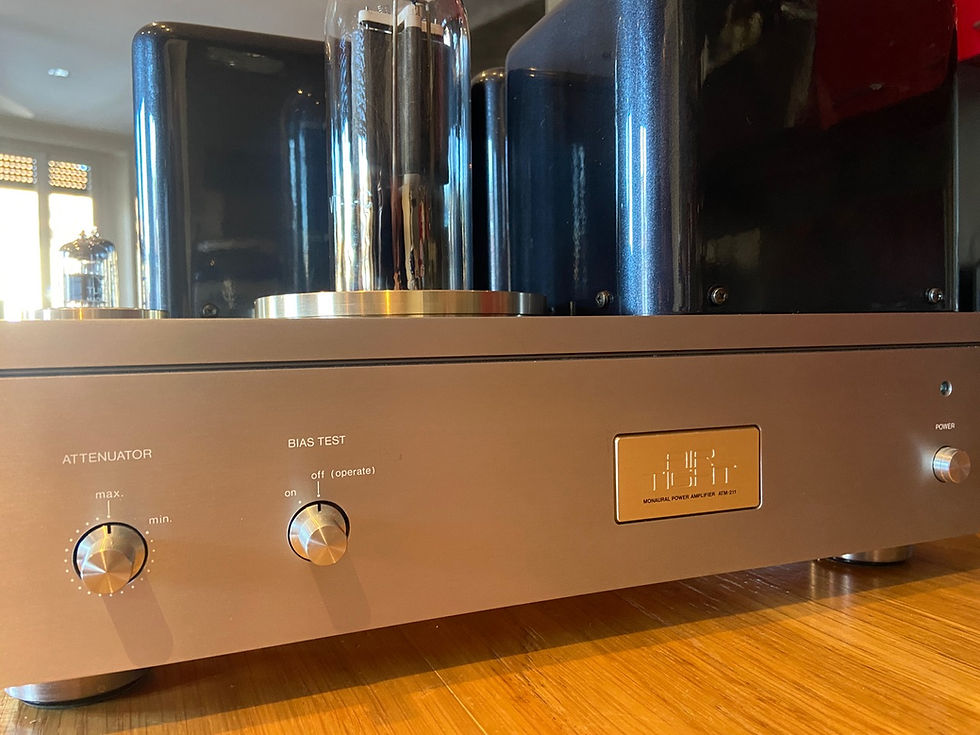

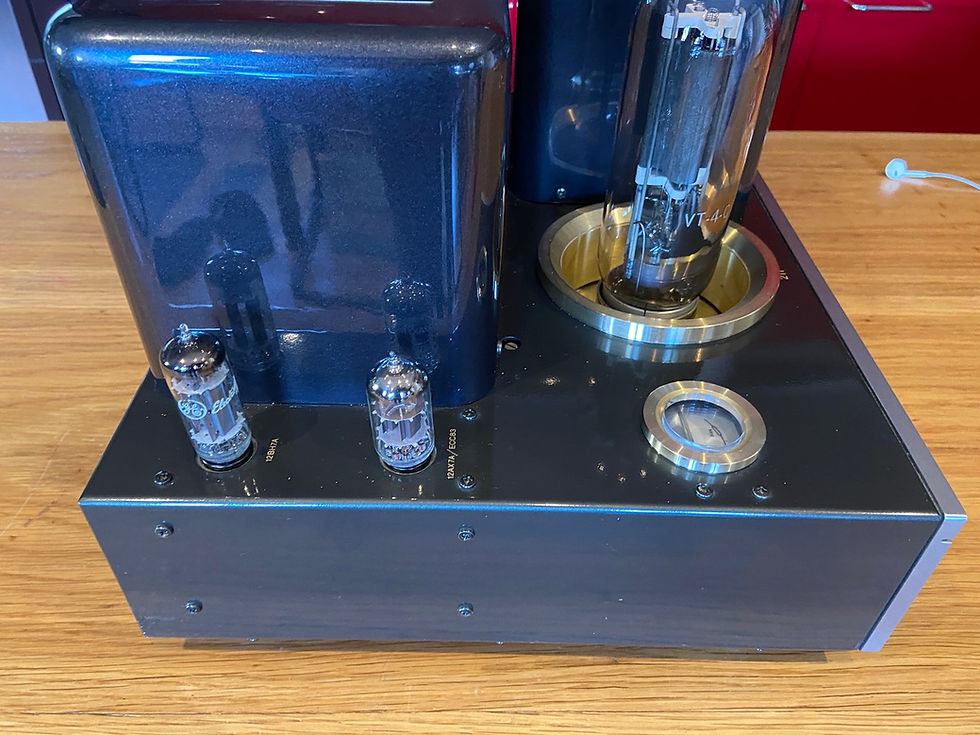

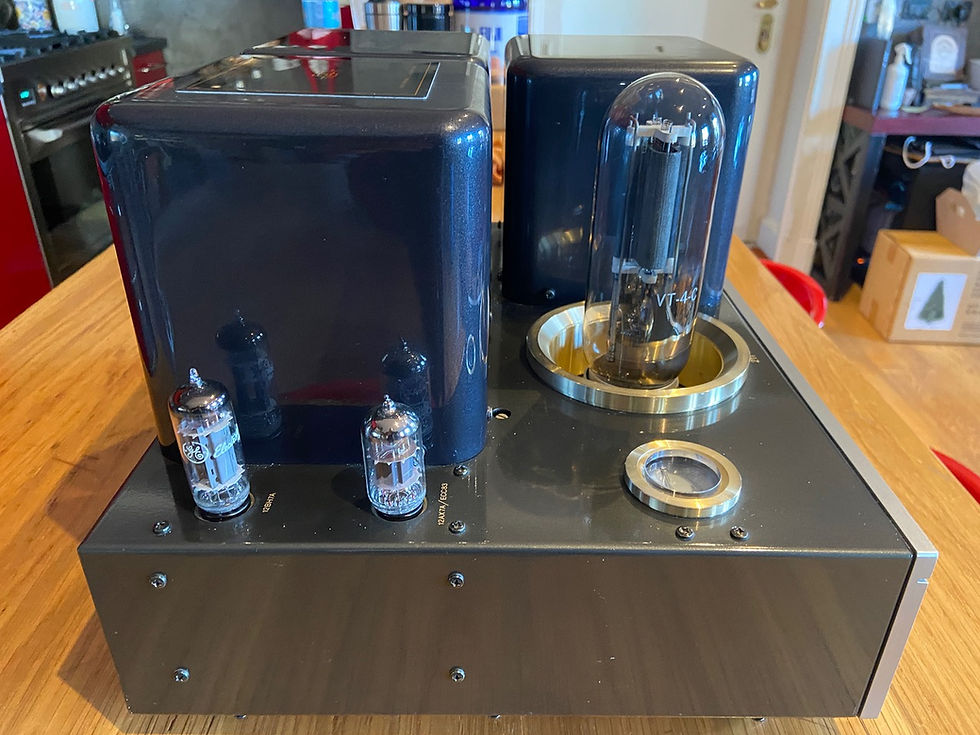

Air Tight ATM-211

🔧 Technical Specifications

• Power Output: 22 watts into 8 ohms (Class A, single-ended triode operation)

• Frequency Response: 20 Hz – 20 kHz (±1 dB at 22W)

• Input Impedance: 100 kΩ (RCA)

• Input Sensitivity: 500 mV for 22W output

• Valves Used:

  • 1 × 211 (output tube)

  • 1 × 12AX7 (input stage)

  • 1 × 12BH7A (driver stage)

• Chassis: Rigid construction with automotive-grade metallic lacquer finish

• Bias Adjustment: Front-panel bias meter with accessible trim pot for tube bias tuning

• Volume Control: Integrated 100kΩ Alps potentiometer

• Speaker Terminals: WBT connectors

• Inputs: Single-ended RCA

• Power Consumption: Approximately 250 VA

• Dimensions: 390 mm (W) × 360 mm (D) × 260 mm (H)

• Weight: 26 kg

🛠️ Design & Features

• Class A Operation: Delivers pure, uncolored sound with no overall negative feedback

• Direct-Coupled Cathode Follower Driver: Ensures a direct signal path for enhanced clarity

• DC-Driven Heater Filament: Eliminates hum from the output valve

• Relay-Activated Muting Circuit: Protects electrolytic capacitors during power-up

• Transformer Configuration: Independently coiled transformers for amplifier stage, bias, heater, and relay circuits to minimize mutual interference

🎵 Performance & Sound Quality

• High-Frequency Response: Noted for a bright and sparkling high-frequency presentation, with a sense of air and openness

• Midrange and Bass: Delivers a rich and natural midrange, with a dynamic and controlled bass response

• Noise Levels: While generally low, some users have reported minor hum or buzz, particularly with highly sensitive speakers

• Overall Character: Offers a vivid and engaging listening experience, with a tonal balance that leans slightly towards the bright side

The Air Tight ATM-211 is celebrated for its exceptional build quality and its ability to drive high-sensitivity speakers with ease. Its single-ended triode design provides a unique sonic character that appeals to audiophiles seeking a pure and immersive listening experience.

11/10: New - Unopened Factory Shipment

An item rated as "NEW" must come in its factory-sealed box. The item should not have been opened or used in any way. The seller should clearly indicate if any warranty is included and specify whether it is backed by the manufacturer. Some manufacturers only honor warranties if the product is purchased from an authorized dealer, and others may offer warranties only to the original owner, even if the box has never been opened. If no warranty details are provided, it’s essential for buyers to inquire with the seller for clarification.

• Important Note: Items that have been opened for inspection or any other reason should NOT be listed as "NEW."

10/10: Mint - Essentially Never Used, Factory Fresh Appearance

The "Mint" grade is reserved for items that have been removed from their original packaging but have barely been used—typically less than a year since first use. These items should look like new without any visible blemishes, scratches, or discoloration from environmental exposure (e.g., oils from fingers, smoke, or household chemicals).

Key characteristics:

• Electronics: No visible scratches, nicks, or blemishes; connectors and plating should appear like new.

• Speakers: No signs of use, with perfectly intact grilles and flawless veneer.

• Turntables: Covers should be free of dust, fingerprints, or swirls.

Items at this level are rare, as very few pre-owned or demo products meet this standard.

9/10: Excellent - Perfect Physical Condition, Light Use

An item in Excellent condition will show signs of light use but will be in pristine physical shape. It may have been used occasionally but remains in near-perfect condition.

Key characteristics:

• Electronics: No visible scratches, but light dust may be present in crevices. Connectors may show slight use, but no discoloration.

• Speakers: Perfect appearance on the front face, with minor indentations on the back or bottom that do not affect the veneer.

• Turntables: Minor signs of use, like slight hazing on the cover or minor scratches on the headshell.

8/10: Very Good - Minor Flaw, Well-Maintained

A product rated 8/10 has been used but is still in great condition. It may have a few minor flaws that are noticeable only on closer inspection, such as small scratches on the top or sides.

Key characteristics:

• Electronics: Minor scratches on the top plate or sides (max 1/2" long), no major wear on connectors.

• Speakers: Slight discoloration along edges or minor scratches on the bottom.

• Turntables: Light haziness on covers, but no visible scratches on the main surfaces.

7/10: Good - Visible Use, Well Maintained

Items rated Good show more significant signs of use but are still in functional condition. They may have noticeable scratches, light wear on connectors, or slight damage to the body.

Key characteristics:

• Electronics: Visible scratches, some wear on the knobs and switches, no dents or bulges.

• Speakers: Minor scratches on the veneer, loose-fitting grilles, or light wear on speaker covers.

• Turntables: Hazy covers, some visible scratches on the tonearm or platter.

6/10: Fair - Noticeable Wear, Fully Functional

An item graded as Fair will show clear signs of use, including multiple minor scratches or even some major blemishes. Despite these imperfections, the item functions perfectly.

Key characteristics:

• Electronics: Major scratches (over 2” long), slight dents, or wear on the front facia.

• Speakers: Larger scratches through the veneer (up to 2”), or worn-out grilles.

• Turntables: Scratched covers or worn-out platter surfaces.

5/10: Average - Multiple Scratches, Well Used

At this grade, the item shows significant wear and multiple scratches. The physical condition may be rough, but the equipment remains functional.

Key characteristics:

• Electronics: Several scratches on the front and other surfaces, some rust or pitting on connectors.

• Speakers: Major scratches, broken or missing grille covers, visible damage on the cabinet.

• Turntables: Cracked covers, visible damage to the tonearm, or excessive wear on the platter.

4/10: Mediocre - Rough Physical Condition, Functional

This grade is for items in rough physical shape, though they still function properly. These items are typically used or aged but are not beyond repair.

Key characteristics:

• Electronics: Broken or cracked display faces, heavy pitting on chrome, or visible rust.

• Speakers: Dented corners or broken binding posts, but still functional.

• Turntables: Missing covers or severe discoloration from wear.

3/10: Poor - Heavily Used, Functional

Items in Poor condition show significant physical damage, but all functions still work. These products are far from "pristine" and may be for parts or temporary use.

Key characteristics:

• Electronics: Severe pitting or oxidation, dented and rusted parts, possibly missing knobs.

• Speakers: Major scratches or chunks missing, but drivers still intact.

• Turntables: Visible damage to tonearm, cracked covers, or other serious wear.

2/10: Very Poor - Heavily Damaged, Some Functional Issues

A Very Poor item is in terrible physical condition and may have functional problems. However, it might still have some usable parts or could be restored.

Key characteristics:

• Electronics: Major dents, missing knobs, non-functional buttons or switches.

• Speakers: Torn drivers, severe damage to the cabinet, or non-functioning grilles.

• Turntables: Warped platters, or tonearm with tight or wobbly bearings.

1/10: Shot - For Parts Only

Items rated 1/10 are in non-functional condition. They are typically beyond repair and can only be used for parts.
